Our product range for demineralised process water treatment
Testomat® EVO TH
Here are some technical details:
- Dimensions: W: 28cm x H: 48cm x L: 38cm
- Weight: 9.1 kg
- Measuring parameters: Water hardness
- Measuring range: 0.05 – 25 °dH (0.89 - 448 ppm)
- Application range: Universal for water treatment plants
- Mains connection: Wide-range power supply unit 100-240 VAC / 100-353 VDC
- Languages: Menu in German, English, French, Dutch, Spanish, Turkish, Mandarin (Chinese), Czech, Russian (other languages on request)
The Testomat® EVO TH offers a variety of new functions, including:
- Optical water detection when filling the measuring chamber
- Import and export of settings via an integrated SD card
- Firmware updates via SD card
- LCD graphic display
- Automatic venting of the indicator line
- Range monitoring with adjustable limit values (underflow limit value 1/ &overflow limit value 2)
- High-precision titration by means of piston dosing pump
- Minimal indicator and water consumption
- Analysis triggering based on water meter or automatic interval operation
The Testomat® EVO TH is a reliable and low-maintenance analyzer that helps to ensure water quality.
_400x400.jpg?ts=1732005081)

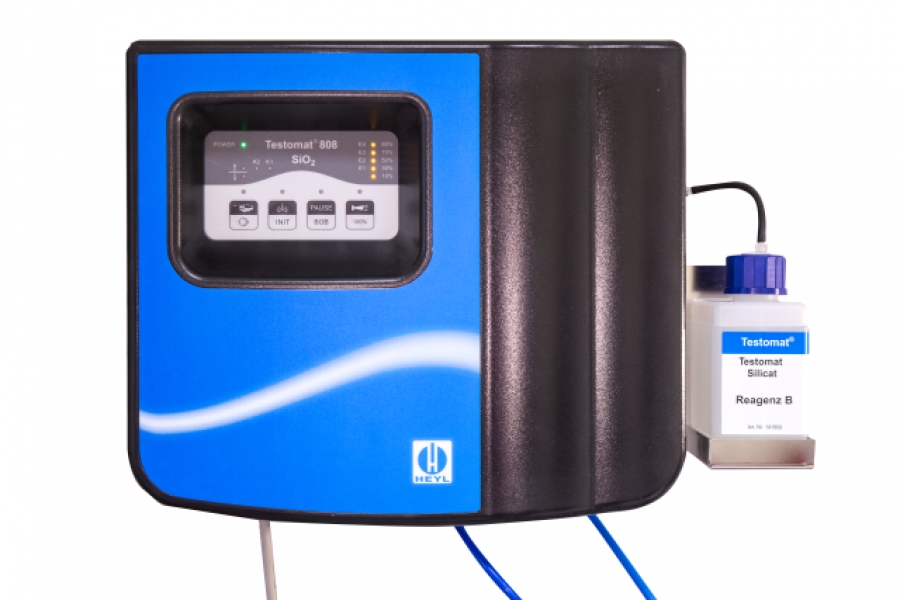

Testomat® 808 SiO2
Here are some technical details:
- Dimensions: W: 364 x H: 314 x L: 138 mm
- Weight: 4.35 kg
- Measurement parameters: Silicon dioxide SiO2
- Measuring range: silicon dioxide SiO2: 0.3 - 1.2 ppm
- Range of application: Sterilization of hospitals / silicate monitoring
- Mains connection: Depending on the device version (24V / 115V / 230V, 50 – 60 Hz)
- Operating pressure: Depending on the device version: 0.3 - 1 bar or 1 - 4 bar
- Meets the requirements of the EN 285:2006 standard and the stricter limit values in the DGSV guidelines
The Testomat® 808 SiO2 allows the selection of 10 different limit values in the range from 0.3 to 1.2 ppm. It automatically monitors the silicon dioxide content in water and contributes to safety and efficiency in hospital sterilization processes.
Testomat® 808 SIO2 reagents
Here are the details on some of the reagents:

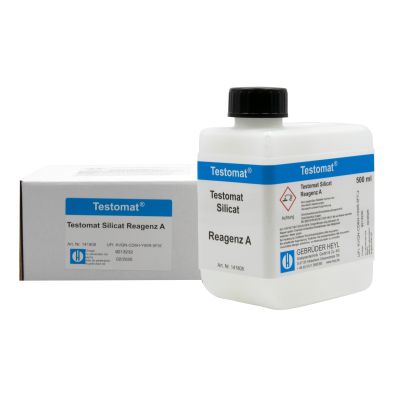

- Testomat® 808 SIO2 Reagent A:
- 500 ml container
- For measuring the silicate content
- Limit value:0.3 - 1.2 ppm SIO2

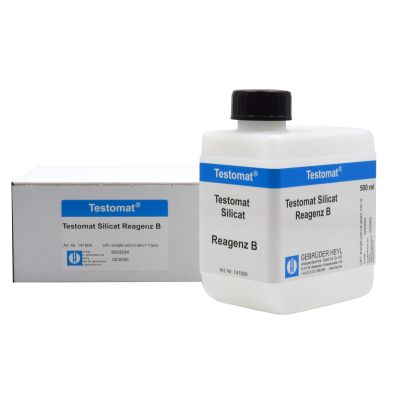

- Testomat® 808 SIO2 reagent B:
- 500 ml container
- For measuring the silicate content
- Limit value:0.3 - 1.2 ppm SIO2

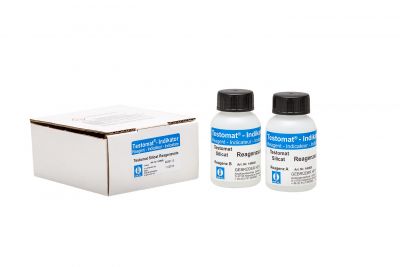

- Testomat® 808 SIO2 reagent set A+B:
- 100 ml bottles
- For measuring the silicate content
- Limit value:0.3 - 1.2 ppm SIO2
The Testomat® 808 SIO2 reagent is important in many applications, especially in the clinical environment for the analysis of silicates in sterile processing waters.
It is important to use the reagent according to the instructions and to store it carefully to obtain accurate and reliable results.

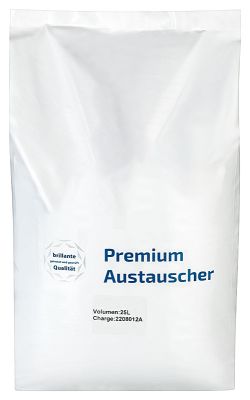

MB A6K4 Mixed bed resin
Here are some important details about MB A6K4 mixed bed resin:
- Intended use: MB A6K4 is suitable for use in non-regenerable cartridges and enables high efficiency in the removal of silica. It is also used for the production of ultrapure water.
- Physical properties:
- Polymer matrix: Gel polystyrene cross-linked with DVB
- Ionic form: H+ / OH-
- Physical form and appearance: Spherical beads
- Sphericity: Min. 95%
- Particle size range (US standard screen): 1.25 - 0.315 mm (wet)
- Water retention H+: 45 - 50%
- Water retention OH-: 53 - 60%
- Max. Temperature (non-regenerative): 100°C
- Max. Temperature (regenerative): 60°C
- pH value range: 0-14
- Recommended operating conditions: Minimum bed depth should be 24 inches (0.6 m) and service flow rate should be 20-60 BV/hour.
- Prolonged exposure to strong oxidizing agents such as chlorine, hydrogen peroxide and concentrated nitric acid should be avoided.
- Options for removal:
- Single purchase - 25 liters (item no. 896495)
- 1/2 pallet - 500 liters (item no. 896496)
- 1 pallet - 1050 liters (item no. 896497)
Please use the MB A6K4 according to the instructions to achieve accurate and reliable results.

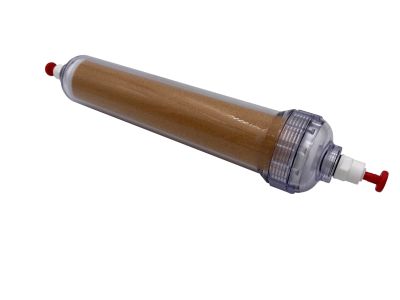

Silicate filter cartridge T808 SiO2 for changing the double pump head
Here is some important information about it:
- Intended use: The silicate filter is crucial for the smooth calibration of the Testomat 808 SiO2. It should be used when replacing the double pump head (item number: 40395) in order to achieve accurate measurement results.
- Application: The cartridge filled with special resin is placed in the sampling line of the device before the inlet and removed again after the adjustment.
- Durability: After initial use, the filter can be used up to 10 times within one year for calibration. After one year, it should be disposed of.
Please note that the calibration of the Testomat 808 SiO2 can only be carried out with silicate-free water.
Therefore, use the specially developed silicate filter cartridge when changing the pump head in order to achieve precise results.
Testomat® indicators TH
Details about the indicators:

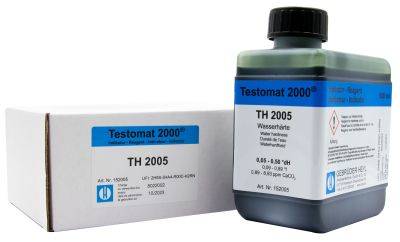

- Testomat® indicator TH2005:
- Measuring range: 0.05–0.50°dH (resolution: 0.01)
- Application range: Suitable for devices such as Testomat 2000®, Testomat 2000® CAL, Testomat 2000® DUO, Testomat 2000® V, Testomat 2000® self clean, Testomat ECO®, Testomat ECO®-Plus and Testomat® EVO TH.

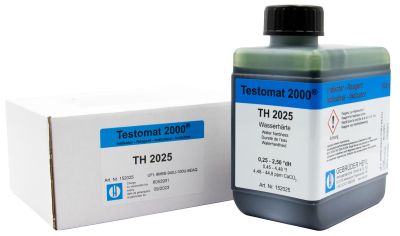

- Testomat® indicator TH2025:
- Measuring range: 0.25–2.50°dH (resolution: 0.05)
- Application range: Suitable for the same devices as above.

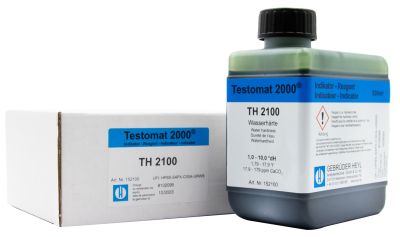

- Testomat® indicator TH2100:
- Measuring range: 1.00–10.00°dH (resolution: 0.20)
- Application range: Suitable for the same devices as above.

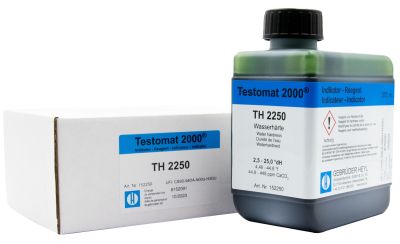

- Testomat® indicator TH2250:
- Measuring range: 10.00–25.00°dH (resolution: 0.50)
- Application range: Suitable for the same devices as above.

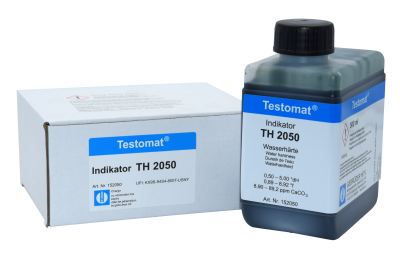

- Testomat® indicator TH2050:
- Measuring range: 0.05–0.50°dH (resolution: 0.01)
- Application range: Only suitable for Testomat® EVO TH and Testomat® LAB TH.
These indicators are useful for monitoring water hardness and ensuring that it meets the required standards. They are often used in water treatment plants, swimming pools, laboratories and industrial applications.

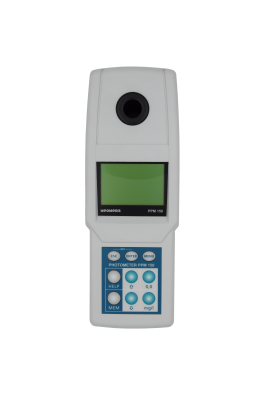

Neomeris PPM 150 Portable Photometer with USB interface
Here are some technical details:
- Dimensions: 450 x 360 x 110 mm
- Weight: 2,200 kg
- Measurement parameters: Water constituents (e.g. silicon dioxide SiO2)
- Measuring range: 0.05 – 25 °dH (corresponds to 0.89 - 448 ppm)
- Application range: Universal for water treatment systems
- Languages: Menu guidance in German and English
The Neomeris PPM 150 offers a range of advanced features:
- Flexibility: Compatible with many reagents from different manufacturers.
- Documentation: Software for creating calibration curves and recording data
- Internal memory: Stores up to 150 calibration curves and up to 1,000 data records.
- USB interface: Wired data transfer between photometer and PC/laptop.
- Pre-parameterized: With measurement curves for various parameters (for more information, please visit our online store).
The device is supplied as a set in a plastic case and contains:
- Multiparameter handheld photometer PPM 150
- Light well to avoid the incidence of extraneous light
- 5 cooling vettes
- Plastic case with foam insert
- Mini USB to USB cable
- Mini USB interface
- Software
The Neomeris PPM150 is a reliable and low-maintenance analyzer that helps to ensure water quality.

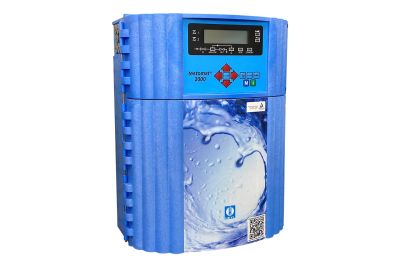

Testomat 2000®
The Testomat 2000® automatically determines the water hardness, the carbonate hardness, the p-value or the minus m-value by means of titration. This device is suitable for checking the water quality of water treatment, water blending and drinking water systems, for checking and controlling the quality of softening systems with and without blending (Testomat 2000® indicator TH 2005–2250) and for checking and controlling the quality of decarbonization systems (Testomat 2000® indicator TH 2005–2250); quality control of decarbonization plants (Testomat 2000® indicator TC 2050–2100), prevention of acid ingress in decarbonization plants and desalination plants (Testomat 2000® indicator TM 2005) and boiler water monitoring of steam boilers (Testomat 2000® indicator TP 2100).
Features:
- Easy, menu-driven operation and programming via plain text display
- Menülanguages (German, English, French, Italian, Polish or Dutch)
- Measurement of residual hardness, total hardness, carbonate hardness, minus m-value, p-value
- Determinable by indicator selection
- Free choice of Härte units in °dH, °f, ppm CaCO3 or mmol/l
- High measuring accuracy thanks to precise piston dosing pump
- Analysis output:
- Automatic interval operation (interval pause adjustable from 0-99 minutes)
- External control
- Dynamic (exhaustion-dependent interval operation)
- Quantity-dependent via contact water meter
- Two independent limit values with hysteresis (1, 2 or 3 bad analyses) and adjustable switching functions
- Monitoring of two measuring points (switchover via external solenoid valves)
- Internal error documentation
- Programmable service address
- Indicator quantities: 100 and 500 ml bottles
- Programmable maintenance interval for maintenance request
- Measurements
Width 44 cm Height 29 cm Length 56 cm - Weight 9.6 kg
Please note that the Testomat 2000® has been used worldwide since the early 2000s for the reliable monitoring of water treatment plants in industry and municipal facilities.

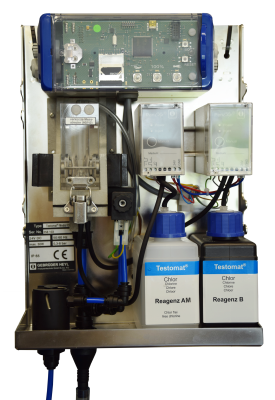

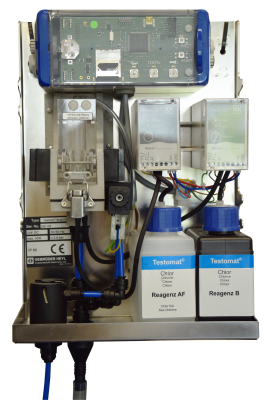

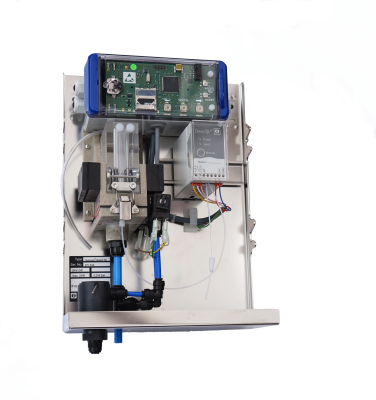

Testomat® LAB
The Testomat® LAB can monitor and analyze the following parameters, depending on the version:
- Total chlorine / free chlorine: This parameter is crucial for the disinfection and safety of the water.
- Water hardness: Measuring the water hardness (total residual hardness) is important to prevent limescale deposits and ensure the efficiency of water treatment systems.
- Monochloramine: Monochloramine is a disinfectant used in drinking water systems. Monitoring this parameter is crucial to ensure water quality.
The Testomat® LABprovides a reliable and low-maintenance solution for ensuring water quality.
Salt tablets for the regeneration of water softening systems
- Composition: The tablets consist of evaporated salt with a minimum content of 99.9% NaCl.
- Dimensions / weight of the tablet: Each tablet has a diameter of 25 mm and weighs 14 g.
- Moisture: The moisture content is less than 0.08%.
- Filling weight: We offer 10 kg and 25 kg salt tablets per bag.
- Packaging type: The tablets are packaged in PE film .
- Storage: The salt tablets should be stored dry and tightly closed .
- Certifications: The salt tablets comply with the standards ISO 9001, ISO 14001 and IFS.
- Standards:
- EN 973:2009 - Products for the treatment of water intended for human consumption - Sodium chloride for the regeneration of ion exchangers - Type A
- EN 16401:2013 - Products for the treatment of swimming and bathing pool water - Sodium chloride for use in electrochemical chlorine production systems - Type A
- EN 14805:2022 - Products for the treatment of water intended for human consumption - Sodium chloride for the electrochemical production of chlorine on site by membraneless processes - Type 1
- EN 16370:2022 - Products for the treatment of water intended for human consumption - Sodium chloride for the electrochemical generation of chlorine on site using membrane cells - Quality 2
Possibilities of acceptance:
- Single purchase: 1x 10kg bag (item no. 896467)
- Pallet purchase: 100x 10kg bags (item no. 896498)
- Single purchase: 1x 25 kg bag (item no. 896468)
- Pallet purchase: 40x 25 kg bags (art. no. 896500)
If you have any questions or require further information, please contact us on +49 (0) 5121 7609-0 or request a callback.
Testomat® 808 indicators
Testomat® 808 indicator 300, 300 S, 301, 302, 303, 305, 310, 320, 330 and 350.
The Testomat® 808 indicators from Heyl are special chemical solutions that are used to determine the residual hardness in water
Here are some details on the indicators mentioned:

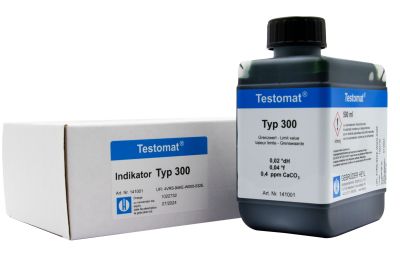

- Testomat® 808 indicator 300:
- Limit value: 0.02° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

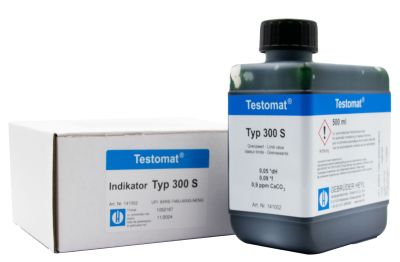

- Testomat® 808 indicator 300 S:
- Measuring range: 0.05° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

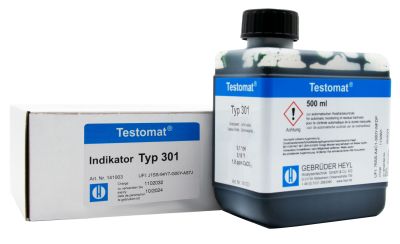

- Testomat® 808 indicator 301:
- Measuring range: 0.1° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

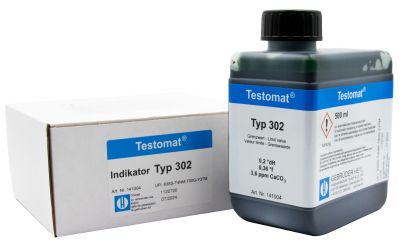

- Testomat® 808 indicator 302:
- Measuring range: 0.2° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

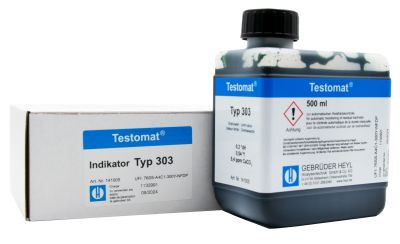

- Testomat® 808 indicator 303:
- Measuring range: 0.3° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

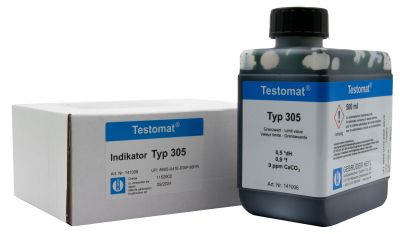

- Testomat® 808 indicator 305:
- Measuring range: 0.5° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

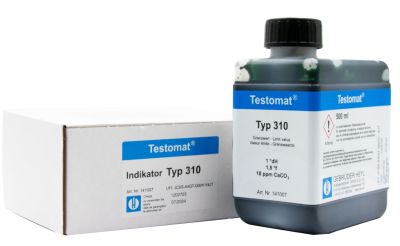

- Testomat® 808 indicator 310:
- Measuring range: 1° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

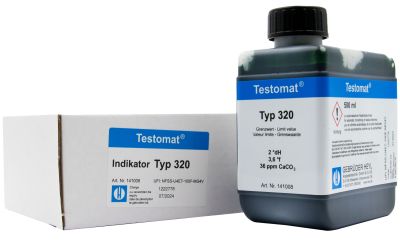

- Testomat® 808 indicator 320:
- Measuring range: 2° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

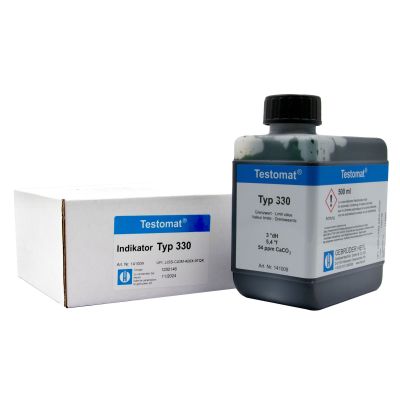

- Testomat® 808 indicator 330:
- Measuring range: 3° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.

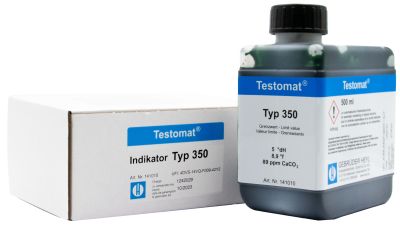

- Testomat® 808 indicator 350:
- Measuring range: 5° dH residual härte
- Application range: Suitable for devices such as Testomat® 808, Testomat® F-BOB.
These indicators are useful for monitoring the residual hardness of water and ensuring that it meets the required standards. They are often used in water treatment plants, swimming pools, laboratories and industrial applications.
_400x400.jpg?ts=1670947292)
Tradition and future for innovative Demineralised process water treatment for Sachsen
Saxony: Hospitals and medical care centers
Saxony is a federal state in the east of Germany with a population of around four million people. Healthcare in Saxony is provided by a network of hospitals and medical care centers that are operated both publicly and privately.
According to the Federal Statistical Office, there were a total of 77 hospitals in Saxony in 2018, with over 26,000 beds. The number of medical care centers offering outpatient services was 241 at the end of 2022. These figures show that Saxony has a good medical infrastructure that meets the needs of the population.
HeylNeomeris: Innovative water treatment in accordance with the latest DGSV recommendations
Gebr. Heyl Vertriebsgesellschaft offers various services in the field of water treatment based on the latest recommendations of the expert committee of the German Society for Sterile Supply (DGSV).
Here are excerpts of some of our most important services:
- Process water treatment in clinics: HeylNeomeris has developed a modular water treatment system that has been specially designed for the outpatient medical care sector. This system can be adapted to the different degrees of water hardness, the different quantities required for treatment and the initial water quality, including any treatment steps required by the supplier.
- Recommendations of the DGSV expert committee: At HeylNeomeris, we rely on state-of-the-art technology and knowledge in our projects. Our system technology and the optimization of your existing system technology is always based on the latest recommendations of the DGSV expert committee on water treatment in the AEMP and on water for the treatment of medical devices.
- Seminars on process risks in sterile processing: HeylNeomeris offers seminars that focus, for example, on the identification of process risks in the sterile processing chain or on deionized water treatment in sterile processing and the potential for cost optimization.
We are therefore not only pharmaceutical water experts, but have also been at your side since 2017 with our know-how and expertise in medical and clinical process water for sterile processes.
