Demineralised process water: Options for the modular cabinet system
Options for the modular cabinet system
UV Disinfection Mini
UV disinfection is used to treat water in order to combat potential microorganisms such as bacteria, viruses and protozoa. UV stands for the UV radiation that is produced by special UV lamps. The principle of UV disinfection is based on the inactivation of the DNA or RNA of the microorganisms. This prevents them from multiplying and causing diseases. The relevance of UV disinfection is based on the fact that UV radiation is effective against numerous microorganisms such as Giardia and Cryptosporidium, as well as viruses and protozoa. Most pathogenic organisms in water can be killed, resulting in a high inactivation rate. Unlike other disinfection methods such as chlorination or ozonisation, UV disinfection does not require the addition of chemicals to the water.
No unwanted additives are produced and it does not change the taste or smell of the water. UV disinfection is a reliable method for killing microorganisms. The effectiveness of the disinfection remains unchanged if the UV lamp is properly maintained. No chemicals are used in UV disinfection, which is why there are no harmful residues in the water or in the environment. It is an environmentally friendly disinfection method that reduces the ecological impact of water treatment. It should be noted that although UV disinfection is an effective method of killing microorganisms, it is not designed to eliminate pollutants, particles or chemical impurities in the water.
The additional UV system is integrated into the plant’s continuous recirculation system.
Pyrogen filter
A pyrogen filter is a special type of filter used to remove pyrogens from water.
Pyrogens are substances that can trigger an immunological reaction in the body, especially an increase in temperature.
These are generally endotoxins that are excreted by bacteria such as Escherichia coli (E. coli). A pyrogen filter consists of a filter element with a pore size that is usually between 0.1 and 0.2 micrometres. This enables the filter to effectively retain particles and microorganisms, including pyrogenic bacteria in the water. The pyrogen filter is used in the modular water treatment system after other process stages such as filtration and disinfection. Once the water has been freed of particles and microorganisms, it passes through the pyrogen filter to eliminate potential pyrogens. To ensure optimal instrument quality for operations, pyrogen filters are particularly important in areas where the absence of pyrogens in the water is of crucial importance, such as in the outpatient care sector.
Pyrogen filters are of great importance in water treatment as a whole, as they ensure water quality and purity and reduce the potential exposure to pyrogenic substances.
The additional pyrogen filter is positioned directly behind the UV system and can therefore also be integrated into the system’s continuously operating recirculation system.

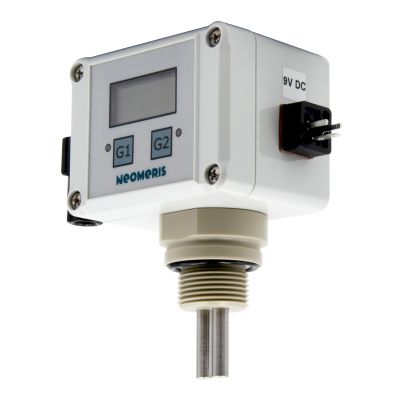

Conductivity measurement on mixed bed
The electrical conductivity of aqueous solutions in the lower range is measured using an integrated two-electrode screw-in measuring cell of 3/4 inch without temperature compensation.
Examples of use:
- Softener cartridges
- demineralisation
- reverse osmosis
- mixed bed cartridges
Added value:
- operation on 9 V DC via supplied plug-in power supply
- 1 potential-free relay with switchable relay control
- Limit value display via LEDs
The conductivity measurement is located in the second mixed bed cartridge and continuously monitors whether the recommended limit value of 1 μS/cm is not exceeded.
Lifting station
The function of the lifting station is to reliably drain the waste water generated from the various process steps. The waste water from regeneration of the softening system and the concentrate from the reverse osmosis system are the main volume flows. The lifting unit also collects the rinsing water that accumulates when the input filters (especially the activated carbon filters) are changed, as well as the intermittent waste water flows from the silicate measuring device and the system separator. If the waste water pipes cannot be connected to a ground-level waste water connection, we recommend using a lifting unit.
Pump type: Sealless immersion pump made of plastic Valox (pump housing, impeller and cover) or motor shaft made of stainless steel AISI 316; 2-pole induction motor 50 Hz (2800 rpm), voltage 230 V, according to EN 60034, protection class IP55, insulation class F.
Materials: Housing, cover and impeller made of PBT
Tank capacity: 13 l tank volume Connections: Regeneration: 8 mm (optionally 10 mm and 12 mm as accessories included in the scope of delivery) via free inlet (system separation) Overflow: 13 mm (optionally 20 mm as accessories included in the scope of delivery)
Pressure connection: ¾” (20 mm)
Max. delivery height: 5 m WS
Max. delivery rate: 70 l/min
Motor power: 0.09 kW (P2)
Operating voltage: 230 V, 50 Hz
Rated current: 0.7 A
Level control: membrane switch with time relay
Connection cable: length 3 m with protective contact plug
Pressure connection: ¾” hose nozzle incl. non-return valve
Conveying medium: brine + cold water, salt content approx. 27%
Max. grain size: solids up to 4 mm
Max. temperature: 40 °C
Dimensions (WxHxD): 450 x 540 x 230 mm
Total weight: approx. 5 kg
NeoTecMaster® 5 inch with housing
Modern water treatment involves a wide range of relevant topics, including the collection, visualisation and processing of data. The NeoTecMaster® is a manufacturer-independent multi-parameter system that has been specially designed for this purpose.
Contents:
- NeoTecMaster® 5 inch – 4 channel system
- NeoTec Slave 4-20mA module (inputs: 8x 20mA)
- NeoTecMaster® housing IP66 for 5″ display, light grey with front film
- USB stick for NeoTecMaster® 8G
- Installation of NeoTecMaster® in housing incl. parameterisation and cabling of NeoTecMaster®
- Universal power supply 24V/6A DC (100-240V AC) (144 watts)
Data recording and visualisation using NeoTec Master®
This multicontroller uses trend graphs for visualisation. It is possible to select and deselect all the configured parameters. All the recorded data is stored on a USB stick and can also be accessed online in the company network. The toggle switch allows you to monitor and display up to eight parameters.
A 5-inch screen and an additional IP 66-rated enclosure are available for the NeoTecMaster®.
The NeoTecMaster® multicontroller concept is of fundamental importance for all water treatment plants, including those in outpatient clinics.
Viewing windows
The Rittal cabinets can be equipped with viewing windows that provide an overview of the measurement technology. Viewing windows in Rittal cabinet systems offer various advantages. This makes it possible to visually inspect the devices inside the cabinet without having to open the cabinet. This makes it easier to monitor, maintain and troubleshoot components without compromising the integrity of the cabinet. Typically, the viewing windows are made of a transparent material such as glass.
Material: extruded aluminium profile with zinc die-cast corner pieces and toughened safety glass
Surface: base frame: powder-coated RAL 7035 hinge and lock profile: anodised, natural
Advantage of the pane: made of single-pane safety glass: highly resistant to solvents and scratches, antistatic, lower risk of injury in the event of breakage. Standard double-bit lock insert, can be exchanged for lock inserts 27mm hinge with 180° opening angle, easy to install
Advantage of frame: Easy to screw to the door thanks to adapted dimensions (door frame can be used as a drilling template). Easy to adjust in height. Stabilises the door cut-out. Conceals the cut edge. No dirt accumulates on the seal, the pane is secured against being levered out, no dirt falls down when the window is opened and no liquid runs behind the window frame profile in the height 30mm or 60mm
Protection class: IP54
Dimensions (WxHxD): 700mm x 470mm x 47mm
Visible surface: 563mm x 398mm
Weight: 5.75 kg
Copper content: 0
Lighting
Interior lighting with RGB colours can also be offered as an option for this design variant. Depending on the configuration of the cabinet systems, it is possible to place them independently. Please note that only cabinets with viewing windows have this option.
Collection tray
The floor trays are an integral part of the cabinet systems.
Neomeris PPM150 Portable Photometer with USB interface
The PPM 150 multiparameter hand-held photometer has 9 LEDs in the wavelength range from 380 to 810 nm and can be used to determine chemical water constituents. The device has the following performance profile:
- flexible for a wide range of reagents from different manufacturers
- software for documentation and calibration curve generation
- internal method memory for a maximum of 150 calibration curves
- Storage of up to 1,000 data sets in the internal data memory; the following data is documented for each data set: date, time, wavelength, reagent used, measurement result, measurement number
- Cable-based data transfer between photometer and PC / laptop via integrated USB interface
- Pre-parameterised with the measurement curves of all the parameters listed below
The following reagents for photometric determination using the PPM 150 are available in addition to the parameters specified for the respective industry solution.
The corresponding data for many other reagents from various manufacturers are available and can be compiled individually for the photometer on request.
Basic version as a set in a plastic case:
- Multiparameter hand-held photometer PPM 150
- Light trap to prevent the incidence of extraneous light
- 5 cuvettes
- Plastic case with foam insert
- Mini USB to USB cable
- Mini USB interface
